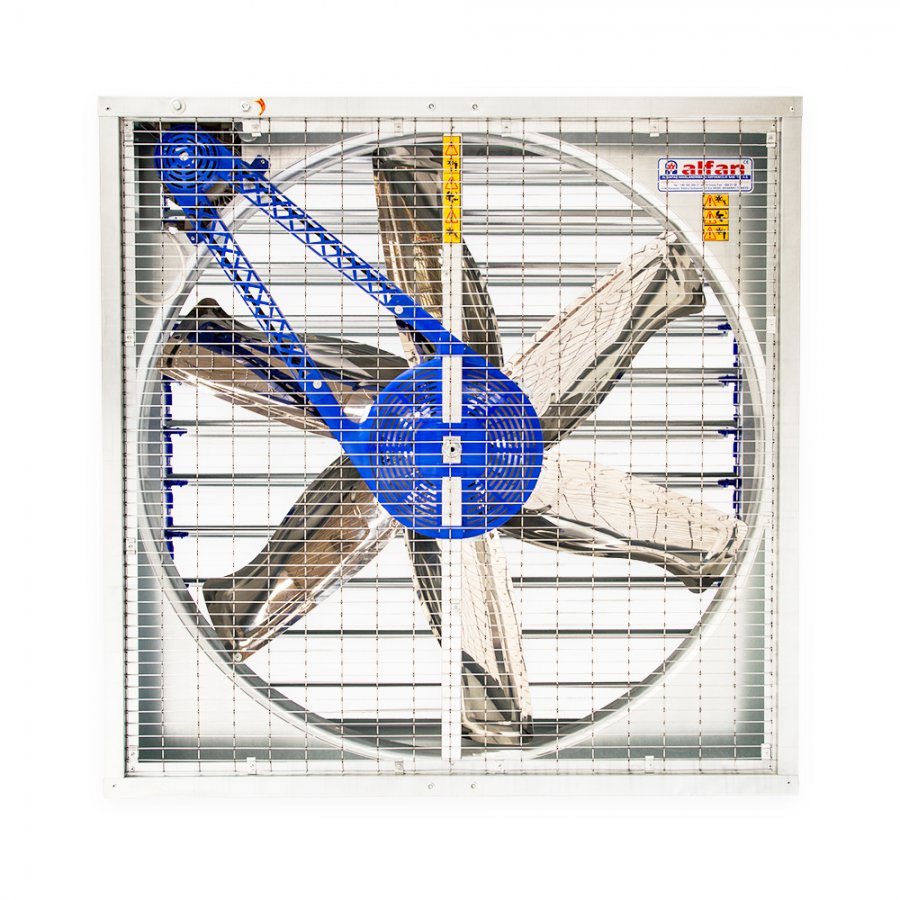

1270 Louvered Grill Ventilation Fan
| FAN MODEL | Weight (kg) | Blades Material | Motor Power (HP) | AIR FLOW m3 / h-PA | ||||||||
| Product No | Product Code (Old) | Product Code (New) | Blades Diameter | 0 PA | 10 PA | 20 PA | 30 PA | 40 PA | 50 PA | |||
| 1 | FA1A1 | FA1A01-01 | 50" | 74 | Aluminum | 1.5 | 42980 | 40890 | 38380 | 35970 | 33630 | 31080 |
| 2 | FA1S1 | FA1S01-01 | 50" | 78 | Stainless Steel Iron | 1.5 | 41970 | 39760 | 37670 | 35350 | 32830 | 30280 |
| 3 | FA1G1 | FA1G01-01 | 50" | 78 | Galvanized | 1.5 | 41970 | 39760 | 37670 | 35350 | 32830 | 30280 |
| 4 | FG1A1 | FG1A01-01 | 50" | 80 | Aluminum | 1.5 | 42980 | 40890 | 38380 | 35970 | 33630 | 31080 |
| 5 | FG1S1 | FG1S01-01 | 50" | 82 | Stainless Steel Iron | 1.5 | 41970 | 39760 | 37670 | 35350 | 32830 | 30280 |
| 6 | FG1G1 | FG1G01-01 | 50" | 82 | Galvanized | 1.5 | 41970 | 39760 | 37670 | 35350 | 32830 | 30280 |
| 7 | FA1A2 | FA1A02-01 | 50" | 71,5 | Aluminum | 1.0 | 38390 | 35650 | 32880 | 29620 | 26590 | 23400 |
| 8 | FA1S2 | FA1S02-01 | 50" | 75,5 | Stainless Steel Iron | 1.0 | 37450 | 34870 | 32150 | 29360 | 25950 | 22540 |
| 9 | FA1G2 | FA1G02-01 | 50" | 75,5 | Galvanized | 1.0 | 37450 | 34870 | 32150 | 29360 | 25950 | 22540 |
| 10 | FG1A2 | FG1A02-01 | 50" | 77,5 | Aluminum | 1.0 | 38390 | 35650 | 32880 | 29620 | 26590 | 23400 |
| 11 | FG1S2 | FG1S02-01 | 50" | 79,5 | Stainless Steel Iron | 1.0 | 37450 | 34870 | 32150 | 29360 | 25950 | 22540 |
| 12 | FG1G2 | FG1G02-01 | 50" | 79,5 | Galvanized | 1.0 | 37450 | 34870 | 32150 | 29360 | 25950 | 22540 |
